Whyte Multiswitch WM508

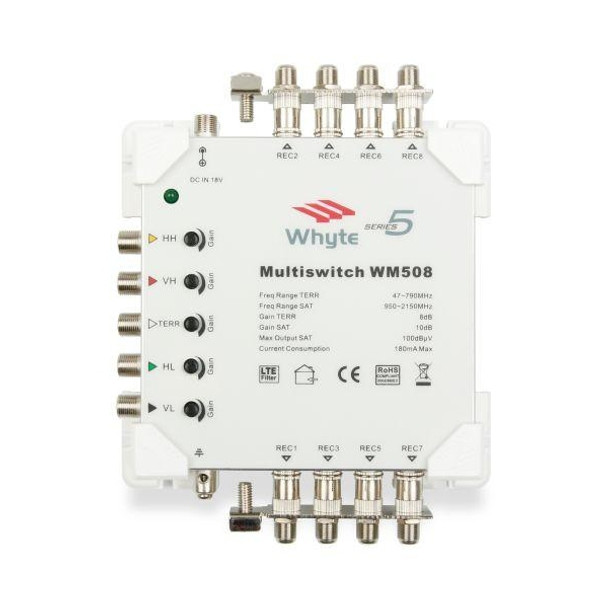

WHYTE TECHNOLOGIES 8-WAY MULTISWITCH WM508

The Whyte Series 5 Multiswitch range is designed to be universally flexible and can be used in small, medium and large Integrated Reception Systems (IRS).

Whyte Multiswitches can be used as a standalone Multiswitch when powered directly via the 18V Auxiliary Input by using the Whyte 2.5A Power Supply Unit (model WPSU2.5A).

Key Features:

• Line Powered Multiswitch
• Use as standalone when powered with a Whyte PSU
• SAT gain 10dB / TERR gain 8dB
• Gain Control on all inputs
• Uses the receiver power to reduce demands on system PSU
• Colour coded inputs and outputs
• LED power indicator
• Inbuilt LTE filter
• Adequate clearance to route cables under the Multiswitch
• Use Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS Systems

Technical Specification:

• Weight 0.64 kg
• Dimensions 15.7 x 13.8 x 4.3 cm
• FREQUENCY Satellite: 950-2150MHz, Terrestrial 47-790MHz
• INPUTS (F-Type Connector) 4 SAT + 1 TERR
• OUTPUTS (F-Type Connector) 8 Tap outputs
• GAIN SAT: ≥10dB | TERR:≥8dB
• GAIN CONTROL SAT : 11±2dB, TERR : 11±2dB
• ISOLATION Cross Polar: ≥25dB, Rejection : ≥20dB, Tap-Tap Sat: ≥25dB, Tap-Tap Terr: ≥23dB, Trunk – Trunk: ≥28dB
• OUTPUT LEVEL SAT (IMA3 35db): 100dBμv, TERR (IMA3 60db): 90dBμv
• SWITCHING VOLTAGE 15±0.8V
• TRUNK MAX CURRENT 2A
• SWITCHING COMMANDS 13V-18V, 13V22k-18V22K
• CURRENT CONSUMPTION 180mA max
