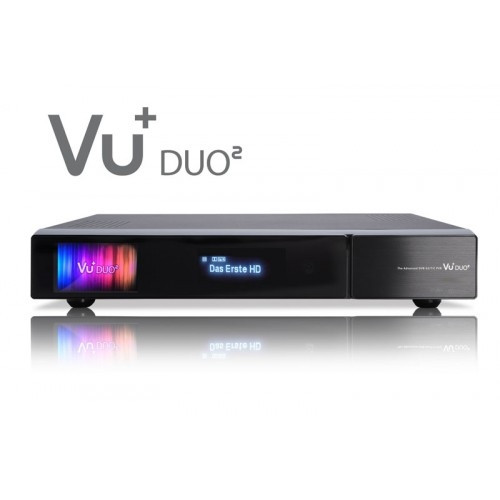

Vu+ Duo2 Full HD 1080p Dual DVB-S2 Twin Tuner Linux PVR Ready

DISCONTINUED - FOR ALTERNATIVE CLICK HERE

VU+ DUO² FULL HD 1080P TWIN TUNER DUAL DVB-S2 LINUX PVR READY

In stock for immediate dispatch.

Important: Supplied with 1 x DUAL DVB-S/S2 Satellite Tuners as standard (Twin Tuner) leaving a spare tuner slot for say another single or dual satellite tuner (DVB-S2) and/or a terrestrial/cable tuner DVB-T/C.

VuPlus Duo 2 - The new flagship receiver from VuPlus. The Vu+ Duo² new features include improved connectivity to mobile devices such as notebooks, tablets and mobile phones. Thanks to the transcoding function, the gigabit LAN and the fast computational speed HDTV content can now be seen on all mobile iOS or Android devices. The built-in Wlan interface allows even inexperienced users to use network-based content such as HbbTV or streaming.

Digital satellite receiver for digital TV and Radio programs. Support for up to 4 tuners if you buy 2 additional Twin Tuner Plug and Play Modules providing enough room to satisfy even the most demanding user.

The main feature is the strong 1300 MHz Dual Core processor VU+ Duo2. Experience high definition TV with your VU+ Duo2.

Key Features:

• 2 x Plug & Play tuner slots suitable for DVB-S2 / DVB-C / T / DVB-S2 Dual tuners
• Transcoding function
• Airplay function
• Opera browser
• HbbTV
• HDMI 1.4 connection
• HD PIP
• Gigabit Lan
• Plug and Play support for 2.5 "SATA - Hard Drives
• 2 x display (VFD and LCD)
• WOL

Key Technical Highlights:

• 1300 MHz dual-core MIPS processor
• 1GB Flash
• 2GB DDR3 DRAM
• Gigabit Lan
• 2 x DVB Common Interface slot
• 2 x Smartcard-Reader (Xcrypt)
• 3 x USB (1 x front, 2 x back)
• SPDIF audio output optical (digital)
• 1 x HDMI 1.4 video / audio output (digital)
• 1 x Scart (TV)
• 1 x RCA video output
• 2 x audio output (L / R) RCA (analog)
• Plug and Play support for 2.5 and 3.5 "SATA - Hard Drives
• Unlimited channel lists for TV / Radio
• EPG (electronic program guide) support
• Support of Bouquet lists
• OSD in many languages ​​and skin-support
• Automatic / manual channel search
• DiSEqC 1.0/1.1/1.2, USALS
• Power switch

Technical Specification:

• DVB-S2 and DVB-S2 Dual Tuner:
• Input Frequency Range 950 .. 2150 MHz
• QPSK Demodulation EN 302 307
• Signal Level - 65 dBm ... - 25 dBm
• Noise Level 12 dB max.
• DBS-Tuner Input Connector F-Type female
• Input impedance 75 ohms
• AFC capture range + / - 3 MHz
• Demodulation Shaped QPSK and 8PSK
• Viterbi and Reed-Solomon FEC
• Viterbi rates 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
• Roll-off Factor 35%

DVB-C/T- hybrid tuner:

• VHF channels: 2-12 (49 .. 230 MHz)
• UHF channels: 21-69 (470 .. 861 MHz)
• DVB-C HDTV compatible
• Input frequency range: 51 .. 858 MHz
• Symbol rate: 1 ... 7 Mbaud / s
• Input Impedance: 75 ohms
• Tuner In / Out connector: IEC
• DVB-C / DVB-T can be selected via software

Common Interface:

• 2x Common Interface Power Consumption max. 0.35 A/5V

Video decoder:

• Video Compression MPEG-2 / H.264 and MPEG-1 compatible
• Video Standard PAL G / 25 Hz, NTSC
• Video Formats 4:3 / 16:9
• Letterbox for 4:3 TV-Device

Output digital:

• Output Level 0,5 Vss on 75 Ohm
• Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz
• S / PDIF-Output optical, coaxial (AC3)
• Audio decoder
• Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
• Audio Mode Dual (main / sub), Stereo
• Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22:05 kHz, 24 kHz

Output analog:

• Output Level L / R 0,5 Vss on 600 Ohm
• THD> 60 dB (1 kHz)
• Crosstalk <-65 dB

Video parameter:

• Input Level FBAS 1 Vss + / - 0.25 dB on 75 Ohm

TV-Scart:

• Output: FBAS, RGB, over OSD selectable

Ethernet:

• 1000/100/10 MBit compatible interface

USB:

• USB 2.0 connector (3x)

LNB power and DVB-S2 tuner:

• LNB Current 400mA max. , Short-circuit proof
• LNB Voltage horizontal "no load 19.5V" 17,6 V at 400mA
• LNB Voltage vertical "no load 14.5V" 11,8 V at 400mA
• LNB is switched off in standby mode

Control of the satellite position:

• DiSEqC 1.0/1.1/1.2 and USALS - Rotor Control

Power consumption:

• <15W (in operation, with LNB)
• <13W (in operation, without LNB)
• <0.5 W (Deep-Standby-Mode)

Input voltage:

• 230V / 50 Hz alternating current + / - 15%
• 110V / 60 Hz alternating current + / - 15%

General:

• Ambient Temperature +15 ° C. .. +35 ° C
• Humidity <80%
• Dimensions (W x D x H): 380 mm x 290 mm x 60 mm
• Weight: 3,0 kg without HDD

Please Note: This box is offered for sale to competent enthusiasts with knowledge of networking, FTP, and Telnet/SSH
