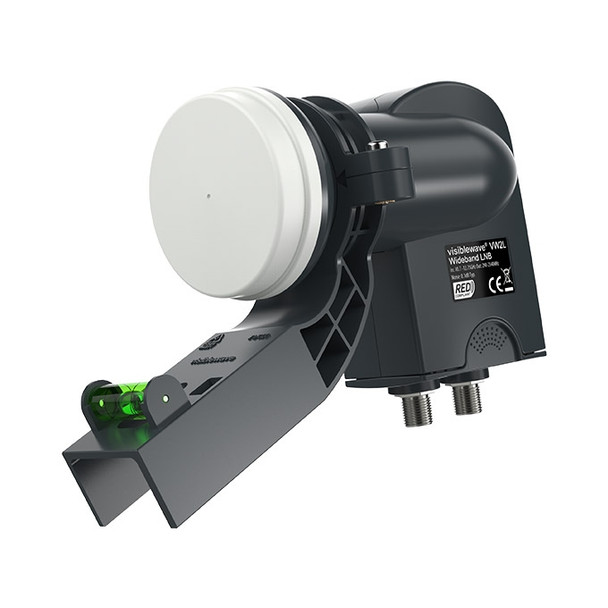

VISIBLE WAVE WIDEBAND LNB - TWIN OUTPUT - MODEL: VW2L

The visiblewave VW2L is a twin output wideband LNB compatible with Sky Q™. The VW2L has a 40mm collar and comes complete with clamp with built-in spirit level for attachment to a Sky™ dish. Without clamp the LNB can be attached to a regular satellite dish antenna.

Key Features:

Finished in grey
Supplied with a Sky™ compatible bracket
40mm collar - can be fitted to a regular satellite dish
Two outputs - V / H
Built-in spirit level

Technical Specification

Input Frequency	10.7 ~ 12.75 GHz
Output frequency	Vertical: 290 ~ 2340 MHz
	Horizontal: 290 ~ 2340 MHz
L.O. frequencies	10.41 GHz
L.O. Stability	+/-0.5 MHz (max) @ Room Temp.
	+/-1 MHz (max) @ -40°C ~ +60°C
L.O. Phase Noise	-50dBc/Hz @ 1kHz (max.)
	-75dBc/Hz @ 10kHz (max.)
	-100dBc/Hz @ 100kHz (max.)
Noise Figure	0.1 dB (typ.)
Conversion Gain	50 dB (min) / 60 dB (max)
Gain Flatness @ 26MHz	+/-0.5dB (typ.)
Gain Variation	7dB (max.) @ full band
Cross Polar Isolation	25 dB (typ.)
Image Rejection	40 dB (min)
Current Consumption	0.85W (max.) (70mA @ +12V DC)
Power Voltage	9 – 19V DC
Connector Type	Female F-connector
Output Spurious	<-60dBm
Operating Temp.	-40’C ~ +60’C
RED Compliance	EN 303 372-1
Part number	VW2L
