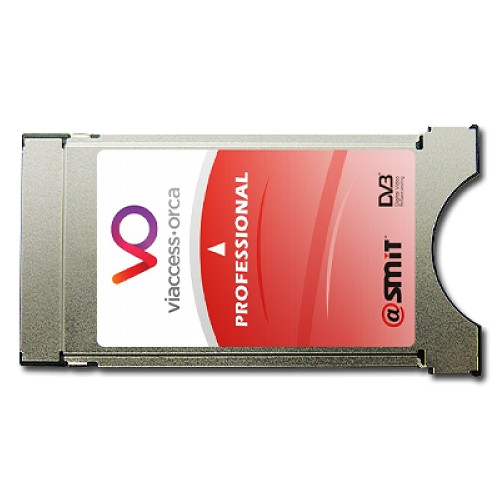

Viaccess Professional CAM 1 Channel by SMiT

VIACCESS ORCA PROFESSIONAL CAM BY SMiT

SINGLE CHANNEL VARIANT

Official Viaccess professional conditional access module.

Includes Chip ID for smartcard pairing.

Adopting ASIC chip with proprietary intellectual property right:

Embedded 32-bit CPU (ARM7TDMI)
Adopting advanced 0.18-micron technology
Advanced language development environment
Supporting subsequent development of value-added services

Descrambling: Supporting common descrambling algorithm of Europe
DVB-CI interface: Compatible with DVB-CI / PCMCIA
Smart Card interface: ISO7816

Specification:
Dimensions: PCMCIA type II
Interface protocols of the host: In full compliance with DVB-CI Profile 1 protocol;
External interface of IC card: Build-in SmartCard reader, in compliance with ISO7816 protocol;
Operating system: Embedded Linux system with proprietary intellectual property rights;
Internal descrambler: Integrated universal DVB descrambler;
MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software;
Enclosure structure: Latest compact structure and design for assembly;
Descramble 1 TV Channel using one module
