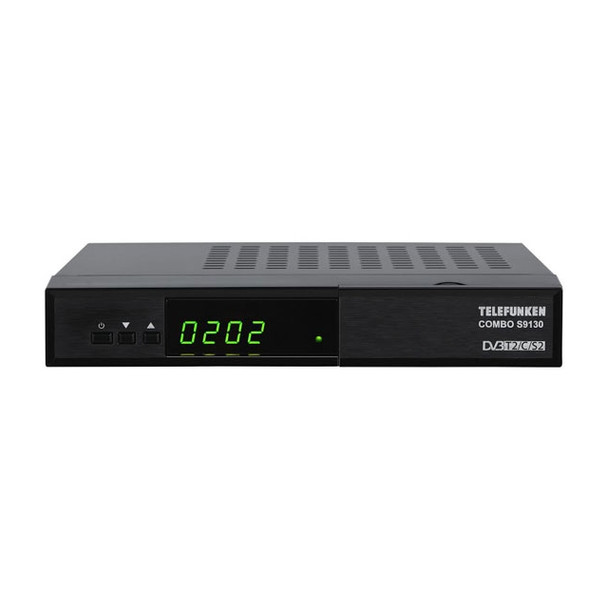

Telefunken S9130 Combo CI+ 4K UHD Digital Receiver USB PVR Ready

TELEFUNKEN S9130 COMBO CI+ UHD DIGITAL RECEIVER

4K UHD SET TOP  BOX     CI+ READY     USB PVR READY

The Telefunken S9130 is a formidable 4K UHD combo (satellite/terrestrial/cable) digital receiver equipped with a CI+ (common interface) slot for reception of encrypted programmes along with USB to allow PVR recording.

The offcial CI+ slot is compatible with a multidude of conditional access modules including modules from providers such as Tivusat, BIS, Fransat, Canal Digitaal, Kabelio, HD+, TV Vlaanderen to name a few.

The S9130 has the added benefit of tuning logically with providers such as BIS, Fransat and Tivusat, meaning the channels are numbered in the same order as set out by the service provider.

Technical Specification:

Receiver : TER, CA, SAT
Brand : Telefunken
Definition : SD, HD, 4K UHD
Conditional access : CI+
Common interface : 1
PVR : USB PVR Ready
Compatibility : Tivùsat CAM, BIS Ready CAM, HD+ CAM, Canal Digitaal CAM, Télésat CAM, TV Vlaanderen CAM
Allows to receive the channels of TNT : Yes

Audio
Audio mode : AAC, Dolby Digital, Dolby Digital +, Dolby AC3, Dolby AC3+, HE-AAC, MPEG-1 layer 1/2, MPEG-2 layer II

Video
Picture / video resolution : 1920 x 1080p, 3840 x 2160p, 4k Ultra HD, 4Kx2K@60fps

Standard
Compression standard : H.264, H.265

Tuner
Transmission : DVB-T2, DVB-T2 (H.265), DVB-S2, DVB-C, HEVC H.265
Input frequency : 950 - 2150
Modulation SAT : 8PSK, QPSK
Connector type (sat) : F - Femelle
DiSEqC compatible : DiSEqC 1.1
Tuner DVB-T : Single
Input frequency : 174 - 864
Modulation TER : 16QAM, 64QAM, 128QAM, 256QAM
Connector type (TER) : IEC femelle
Power : 5V (DVB-T / DVB-C), 13/18V (DVB-S)

Connections
Antenna input : 2 (SAT/ cable ou TNT)
Analog Audio Output : 1
SPDIF Coaxial : 1
HDMI : 1
USB 2.0 : 1

User interface
OSD languages : Multilingual
Teletext : Yes
Parental control : Yes
EPG : Yes
Channels memory : 4000
Favorite list : Yes
OTA soft download : via USB
Automatic satellite detection : Yes
Automatic channels update : Yes

Multimedia
Multimedia player : Yes
Video codecs : MPEG-1, MPEG-2, MPEG-4, MKV
Video formats : AVI
Audio Formats : MP3
Pictures formats : JPEG

Recording functions
Hard disk drive : External
Time Shift : Yes
Number of simultaneous recordings : 1
Pause : Yes

Characteristcis
Dimensions (mm) : 230 x 139 x 44 mm
Consuption while moving (Watts) : 19W
Stand-by consumption : 0.5W
Compatible 12 Volts : yes
Weight : 780 g
Warranty : 2 years

Included items
Product : Telefunken S9130
Accessories supplied : Remote control, Battery, User manual, Power cord EU/UK
