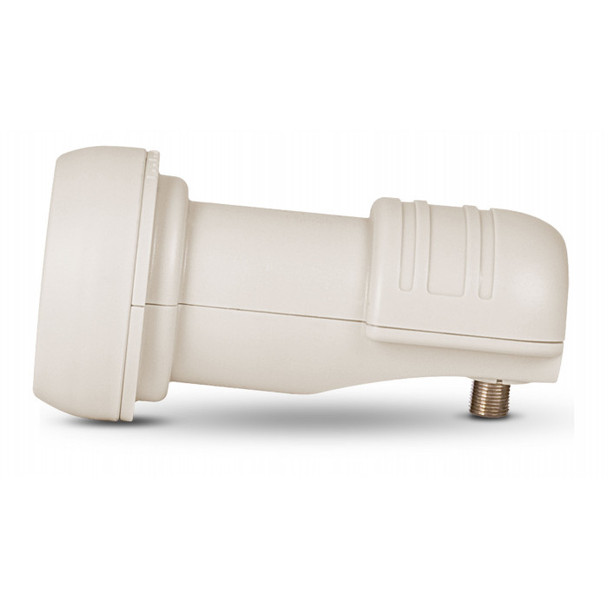

Technisat Premium Single Output LNB

TECHNISAT PREMIUM SINGLE OUTPUT LNB

Technisat single output LNB. The LNB is suitable for satellite antenna dishes with standard 40mm LNB holder and is used to implement TV, radio and multimedia offerings that are broadcast digitally, analogously or in HD quality via satellite.

The LNB has an output that can be connected directly to a receiving device. A rubberised cable boot is included.

The following materials are essentially required for this: A satellite dish with AZ / EL holder and universal V / H LNB as well as a satellite receiver, an antenna socket and the corresponding cable runs with the associated F plugs.

Technical Specification:
Colour Beige (Off-White)
Weight (box) 200 g
Weight (device) 120 g
Device (WxHxD) 5.80 x 5.80 x 11.30 cm
Carton (WxHxD) 6.50 x 6.50 x 12.00 cm
Ambient conditions operation
Ambient temperature -30 ... 60 ° C
humidity 10 ... 90%
Local oscillator
Low band 9.75 GHz
High band 10.6 GHz
LNB control
Vertical 11.5 ... 14 V
Horizontal 16 ... 19 V
Band switching 22 kHz
Output frequency range
Low band 950 ... 1950 MHz
High band 1100 ... 2150 MHz
Input frequency range
Low band 10.7 ... 11.7 GHz
High band 11.7 ... 12.75 GHz
Noise figure
Noise figure 0.7 dB
Power supply
LNB power supply 11.5 ... 19 V
Power consumption Max. 190 mA
Outputs  1
Feed intake 40 mm
Connection type F socket
Impedance 75 Ω
Reinforcement 50 ... 65 dB
