TechniSat

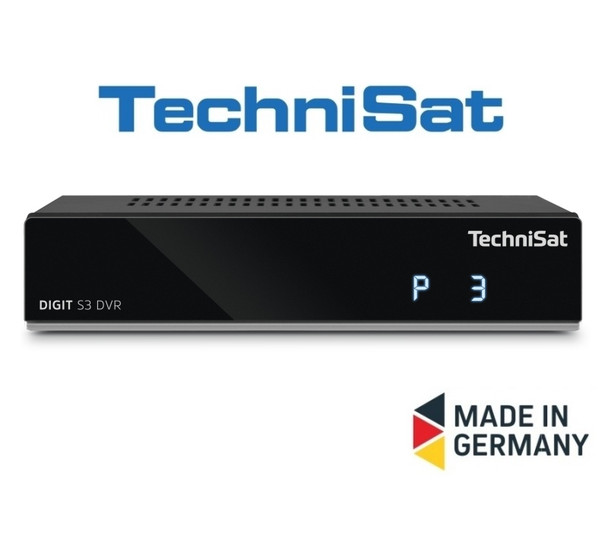

Technisat DIGIT S3 DVR Compact HD Digital Satellite Receiver
- SKU:
- TCNSTDGTS3
- EAN:
- 4019588047136
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Description
INCLUDES FREE TECHNISAT SCART / PHONO ADAPTER KIT!
TECHNISAT DIGIT S3 DVR HD DIGITAL SATELLITE RECEIVER PVR READY
COMPACT FTA HD RECEIVER - GREAT FOR HOME OR CARAVAN/MOTORHOME
TWO YEAR WARRANTY & SUPPORT
EXTERNAL USB PVR READY
The Technisat DIGIT S3 DVR is an easy-to-use, compact HDTV receiver for receiving unencrypted TV and radio programs via satellite. DVR stands for "digital video recorder" also know as PVR Ready. You can use the recording function to conveniently record programs on a USB data device such as USB HDD. Alternatively, it is possible to pause a program using the time-shift function and continue it at a later point in time.
Key Features:
- Easy AutoInstall Setup
- Reception of free digital TV and radio programs via satellite (DVB-S/S2)
- HDTV: High definition television with excellent picture quality
- EPG: Electronic Program Guide
- DVR Ready: digital video recorder via USB data device
- Timeshift Record (in connection with an external storage medium)
- ISIPRO: Automatic update of the program list
Easy Auto-Install Using your Technisat box for the first time requires a number of important settings storing specific to your location. Clear on-screen instructions from the Technisat easy installation wizard will guide you through an easy-to-understand set up procedure. You will be up and running in no time.
HDTV stands for High Definition Television, thus for outstanding picture quality. With HDTV pictures can be displayed in much greater detail and with much finer gradations. Contrast and contours are more precise and colours truer to their originals. Furthermore, the wide screen format on HDTV broadcasts corresponds much better to human visiual perception. So it creates a more vivid impression overall
HDMI This high performance interface is provided especially for fat digital transmission of high-resolution pictures and sophisticated sound without loss. Even complex picture content and fast moving sequences are displayed in first-class quality. Besides their high performance capability, HDMI connections are distinguished by bidirectional data transmission.
12V Camping This device can be operated using both normal 110/230V mains and a 12V power supply, e.g. for a vehicle. Hence it is suitable for both home and mobile use.
ISIPRO The free channel list manager from TechniSat saves annoying manual channel searches. If the frequency changes or when new channels are added or removed, this service automatically updates the existing channel list.
DVR Ready Do not miss any more programmes and record your favourite films, TV programmes and music losslessly via USB such as USB hard drives and high-speed memory sticks.
Technical Specification:
Image display | |
SD | Yes |
HD | Yes |
576i | Yes |
576p | Yes |
720p | Yes |
1080i | Yes |
1080p | Yes |
LNB Control | |
Vertical | 14 V |
Horizontal | 18 V |
Band switch | 22 kHz |
Current consumption | Max. 400 mA (short-circuit protection) |
DiSEqC | 1.0 / 1.2 / SCR1 / SCR2 |
Connectivity | |
HDMI (out) | 1 |
USB | 1 (USB 2.0) |
Coaxial audio output (S/PDIF) | 1 |
Analog audio/video output | 1 |
Ethernet 100 Mbit/s (RJ-45) | 1 |
F socket SAT (in) | 1 |
Environmental conditions | |
Ambient temperature | 5 … 35° C |
Humidity | 10 … 75% |
Operation/Comfort | |
Page memory | 1000 |
Teletext subtitles | Yes |
Media player | Yes |
Remote control | Yes |
Parental control | Yes |
Program memory favorites | 4999 |
Teletext | Yes |
Sleep timer | Yes |
Selection of regional channels | Yes |
Quick start | Yes |
Auto standby | Yes |
Decoder | |
Video decoder | MPEG-2 MP @ HL / ML, H.264 / MPEG-4 AVC |
Audio decoder | MPEG-1 & MPEG-2 Layer I, II, III |
Display | |
Type | 7-segment, 4-digit, white |
Internet Functions | |
Internet speed test | Yes |
Recording Functions | |
DVR ready | Yes |
DVR storage medium | via USB |
Timeshift | Yes |
Network & Communication | |
TCP / IP | Yes |
IPv4 | Yes |
100Base-T | Yes |
Tuner | |
Tuner type | Digital satellite |
Satellite (DVB-S2) | 1 |
Single Cable Routing (SCR) | SCR1 = EN50494, SCR2 = EN50607 |
Satellite radio | Yes |
Internet radio | Yes |
Receiving from | HD TV, SD TV |
TechniRouter ready | Yes |
Tuner - Satellite DVB-S2 | |
Reception range | 950 … 2150 MHz |
Viterbi rates | 1/2, 2/3, 3/4, 5/6, 7/8, (automatic adjustment) |
DVB-S | QPSK |
Symbol rate DVB-S | 2 … 45 Mbaud |
DVB-S2 | 8PSK QPSK |
Symbol rate DVB-S2 | 10 … 31 Mbaud |
FEC | RS, LDPC, BCH |
Technisat Value-Added Services | |
AutoInstall | Yes |
ISI-Mode | Yes |
SFI | Yes |
TechniFamily | Yes |
Supported Formats & Codecs | |
Video-Codecs | MPEG-4, MPEG-2, MPEG-1, H.264 |
Video-Formats | MPG, MTS, TS, TS4, M2TS, AVI, ASF |
Image-Formats | BMP, JPEG, GIF, PNG, TIFF |
Audio-Formats | MP3, WAV, M4A, MP2, DDAC3 |
Other features | |
OSD languages | German, English, French, Greek, Italian |
Dutch, Polish, Portuguese, Russian, Spanish | |
Swedish, Czech, Turkish, Hungarian | |
Power Consumption | |
Standby LED | 0.3 W |
Standby with active network conn. | 6.2 W |
Power Supply | |
Nominal voltage | 230 V |
Frequency | 50 Hz |
Mains adapter | External, DC 12V/2A |
Characteristics | |
Weight (device) | 380 g |
Weight (carton) | 994 g |
Device (WxHxD) | 18.00 x 4.40 x 13.00 cm |
Colour | black |
Warranty | 2 years (registration required) |
Made in Germany | YES! |
Scope of delivery | |
Technisat DIGIT S3 DVR | |
Remote control | |
Power supply (EU/UK) | |
HDMI cable | |
Operating instructions | |
Warranty card | |
Technisat analog adapter kit |
