TechniSat
Technisat DIGIT ISIO STC+ 4K UHD German Version inc HD+ Smartcard
- SKU:
- TCHNSTC4KHDP
- EAN:
- 4019588047570
- Availability:
- Discontinued
Description
DISCONTINUED MODEL - SEE LATEST TECHNISAT DIGIPLUS UHD S HERE WITH HOME MULTIMEDIA STREAMING
TECHNISAT DIGIT ISIO STC+ 4K ULTRA HD TRIPLE TWIN TUNER PVR READY
TRIPLE TWIN TUNER? - THERE ARE 3x DOUBLE TUNER'S INSIDE!
GERMAN VERSION WITH 6 MONTH HD+ SMARTCARD

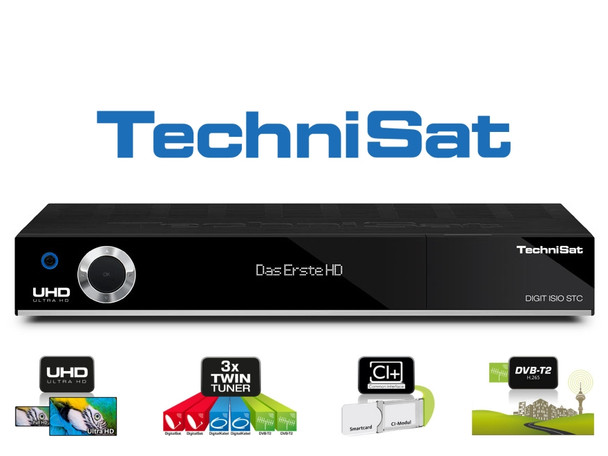

Ultra clear, ultra flexible, ultra versatile: The TECHNISAT DIGIT ISIO STC is the first set-top-box from TechniSat to receive and playback UHD / 4K content on a suitable UHD television.
This device supports the latest standards (HDMI with 4K 50 / 60p / HDCP 2.2 / H.265/HEVC) and it plays UHD video files from either a network or USB storage device.
For TV reception, the DIGIT ISIO STC proves that it’s ultra flexible and future-proofed with its triple twin tuner for DVB-S / S2, DVB-C and DVB-T2 (H.265/HEVC) tuners. Flexibility also prevails when saving recordings which can be put on USB data devices or directly over network to a NAS drive.
The DIGIT ISIO STC operates with ultra versatility over a network proving to a complete multimedia center.
The ISIO Internet technology allows access to media libraries, various apps or HbbTV. At the same time the device excites with watchmi Internet theme channels and it can be controlled conveniently via smartphone / tablet via app. In addition, the receiver is optimized to be used via MyTechniSat Multiplay-app and it plays various files from devices integrated in the network, it will display its own recordings or even provides live TV to other devices connected to the UPnP network.
UHD / 4K
Thanks to support for the latest standards (HDMI with 4K 50 / 60p / HDCP 2.2 / HEVC H.265) processed the receiver (if broadcast) 4K TV via satellite and are the ultra-high resolution images on to a matching UHD / 4K TVs. Moreover, the device UHD files will play from the network or connected via USB 3.0 disks and gives them to a suitable 4K TV again.
Streaming functions depending on the network configuration / not support H.264 standards higher H.264 / AVC Level 4.2.
UHD / 4K Upscaling
With UHD / 4K upscaling can enjoy various contents of non-UHD program sources, such as the standard (HD) -Fernsehprogramm and movies on Blu-ray or DVD, are considered in improved image quality. When UHD upscaling the feedstock is processed and played afterwards in sharp UHD / 4K resolution, which provides for a nearly-UHD display content lower resolution.
3x Twin Tuner
Devices with triple twin tuner to receive digital TV and radio programs via DVB-S2, DVB-C and DVB-T / T2. The respective tuners are available in duplicate. So even more programs can receive, so eg to watch a program while another program is being simultaneously captures.
English user manual available here
Technical Specification:
| Features | |
| Memory Total | 9999 |
| Program Memory Favorites | 9999 |
| Regional program selection | Yes |
| Teletext | Yes |
| Teletext subtitle | Yes |
| Sites memory | 1000 |
| Sleep timer | Yes |
| Wake-up Timer | Yes |
| OSD Languages | German, English, French, Greek, Italian |
| Dutch, Polish, Portuguese, Russian, Spanish | |
| Swedish, Czech, Turkish, Hungarian | |
| LNB | |
| Power vertical | 14 V |
| Power horizontal | 18 V |
| LNB modulation | 22 kHz |
| power supply | Max. 400 mA (short-circuit proof) |
| DiSEqC | 1.0 / 1.2 / Sat-CR |
| Decoding Systems / Common Interface | |
| Conax | Yes |
| Nagravision | Yes |
| CI + | Yes |
| Hotel Mode | |
| Secure access to the hotel mode | Yes |
| Individual home screen | Yes |
| Volume lockable | Yes |
| Menu lock | Yes |
| Lock panel | Yes |
| Integrated LED Watch | Yes |
| Start source selectable | Yes |
| Launcher selectable | Yes |
| Satellite | |
| Input impedance | 75 Ω |
| Frequency range | 950 ... 2150 MHz |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8, (autom. Adjustment) |
| DVB-S | QPSK |
| DVB-S | 2 - 45 Mbaud |
| DVB-S2 | 8PSK QPSK |
| DVB-S2 | 10 - 31 Mbaud |
| FEC | RS, LDPC, BCH |
| Surroundings | |
| Humidity | 10 - 75% |
| Ambient temperature | 5 - 35 ° C |
| Power consumption | |
| Operational maximum | 23.2 W |
| Standby LED | 00.45 W |
| In operation | 13.5 W |
| Standby clock | 1.05 W |
| General characteristics | |
| Recording | External USB/HDD storage or NAS |
| Front display | Vacuum filled - matrix display |
| Tuner | |
| Tuner Type | 3xTwin tuner |
| Receiving | UHD (H.265 / HEVC), HDTV (MPEG-4), SD (MPEG-2) |
| Input impedance | 75 Ω |
| Demultiplexing | ISO 13818-1 |
| DVB-S tuner | 2 |
| Frequency range | 950 ... 2150 MHz |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8, (autom. Adjustment) |
| DVB-S | QPSK |
| DVB-S | 2 ... 45 Mbaud |
| DVB-S2 | 8PSK QPSK |
| DVB-S2 | 10 ... 31 Mbaud |
| FEC | RS, LDPC, BCH |
| DVB-C tuner | 2 |
| Frequency range | 50 ... 858 MHz |
| Demodulation | 16/32/64/128/256 QAM |
| Symbol rate | 1.5 ... 7.2 Mbaud |
| FEC | Reed-Solomon (204, 188) |
| Tuner DVB-T2 | DVB-T2 / HEVC (H265) |
| DVB-T tuner | 2 |
| Frequency range 1 | 174 ... 230 MHz |
| Frequency range 2 | 470 ... 862 MHz |
| Demodulation | COFDM |
| Transfer mode | 2k / 8k |
| Bitrate | 4.98 - 31.67 Mbit / s |
| Power supply | 5 V |
| Environmental | |
| Energy values max | 23.2 W |
| Power consumption in the on-state | 13.5 W |
| Supported formats & codecs | |
| Audio formats | MP3, WAV, AAC, FLAC, M4A, MP2, AIFF |
| Image Formats | JPEG, BMP, GIF, PNG |
| Video Codecs | MPEG-4, MPEG-2, MPEG-1, H.264 (H.264 / AVC Level 4.2) |
| H.265, DivX, VC-1 | |
| Video formats | MP4, M4V, MKV, MOV, MPG, MTS |
| TS, TS4, VOB, WMV, XVID, M2TS, AVI, ASF | |
| Connections | |
| HDMI ™ (out) | 1 (4K 50 / 60p / HDCP 2.2) |
| USB 3.0 | 2 |
| Common Interface Plus (CI +) | 1 |
| SmartCard reader | 1 |
| Digital audio output electrically | 1 |
| Digital audio output optical | 1 |
| Audio output analog | 1 (right / left) |
| 1 Gigabit Ethernet (1000 Mbit / s) | 1 (RJ-45) |
| F socket | 2 |
| IEC connector | 1 |
| SD card reader | 1 |
| Network | |
| Wired LAN | Yes |
| Wifi | Yes (Internal / External USB Dongle (not supplied) |
| Terrestrial | |
| Frequency range 1 | 174 - 230 MHz |
| Frequency range 2 | 470 - 862 MHz |
| Demodulation | COFDM |
| Transfer mode | 2k / 8k |
| Bitrate | 4.98 - 31.67 Mbit / s |
| Power supply | 5 V |
| Power supply | |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| PSU | External |
| Image functions | |
| Picture in Picture (PIP) | 2xSD,HD 2x,1xUHD + 1x HD,1xUHD + 1xSD, 1xSD + 1xHD |
| Freeze frame | Yes |
| Zoom | Yes |
| Teletext | |
| Sites memory | 1000 |
| Audio coding | |
| Audio compression | MPEG-1 & MPEG-2 Layer I & II, MP3 |
| Audio Mode | Dual (main / sub), Stereo |
| Sampling | 32 kHz, 44.1 kHz, 48 kHz |
| Audio | |
| Digital audio output electrically | 1 |
| Digital audio output optical | 1 |
| Audio output analog | 1 (right / left) |
| Cable | |
| Frequency range | 50 - 858 MHz |
| Demodulation | 16/32/64/128/256 QAM |
| Symbol rate | 1.5 - 7.2 Mbaud |
| FEC | Reed-Solomon (204, 188) |
| Characteristics | |
| Colour | Black |
| Size (WxHxD) | 28.60 x 4.60 x 15.50 cm |
