TechniSat
Technisat DIGIDISH 33 Aluminium Satellite Dish Kit Polar White
- SKU:
- DGDSH33SLPW
- EAN:
- 4019588733947
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Description

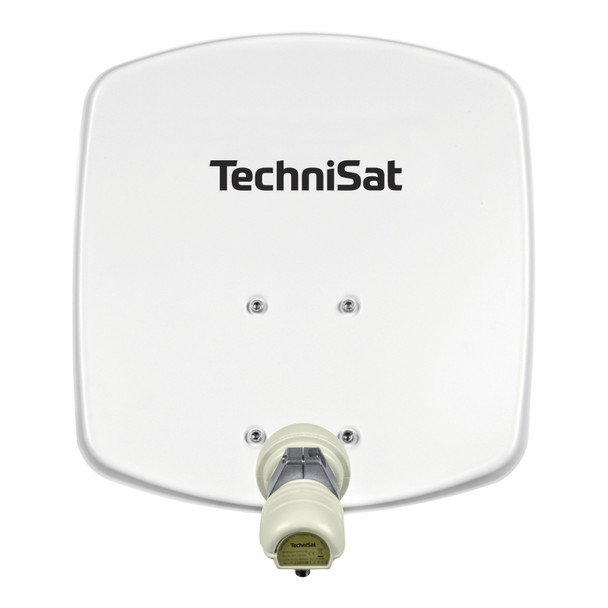

TECHNISAT DIGIDISH 33 ALUMINIUM SATELLITE ANTENNA KIT POLAR WHITE
PREMIUM 100% ALUMINIUM DISH - POWDER COATED - BEAUTIFUL SIMPLE DESIGN
EXCEPTIONAL RECEPTION PERFORMANCE EQUIVALENT TO MANY 45CM ANTENNAS
SUPER-COMPACT WALL MOUNTED INCLUDED FOR A TIDY INSTALLATION
SUPPLIED WITH 40MM COLLAR WITH OPTION TO ADD SINGLE / TWIN / QUAD LNB
TechniSat DIGIDISH 33 Aluminium Satellite Antenna Kit with compact wall mount and optional Universal Single, Twin or Quad Output LNB.
This 100% aluminium digital satellite antenna designed for single-satellite reception measures just 33cm in height and width and is extremely powerful, performing better than many 45cm dishes.
The excellent reception properties are due to Technisat’s superb engineering and the precise shape of the antenna. The DigiDish 33 consists of high-quality aluminium and is powder coated on both sides guaranteeing exceptional weather resistance. The DigiDish 33 is also a masterpiece visually.
With DIGIDISH 33, all digital television and radio programs from ASTRA 19.2° East, ASTRA 28.2° East or HOTBIRD 13.0° East can be received in the UK, Germany, Austria and Switzerland.
Discreet installation
The DIGIDISH 33 takes up very little space and can be installed where larger circular antennas would interfere due to the impairment of the facade. It is also the ideal satellite antenna for discreet placement on a balcony.
A stylish and super-compact wall mount is included as standard (see gallery picture above). For attachment to an aerial mast or pole mount you need the TechniSat on-pipe fitting (available separately), which can be attached to pole diameters of 30 - 63mm.
Form factor and colour of the LNB may differ slightly from item pictured. Performance will not be compromised.
Installation instructions available for download here
General characteristics | |
Material | Aluminium |
Coating | Powder-coated on both sides |
Top features | Only 33cm small |
Top features | 1 orbital position (e.g. Astra 2) |
Top features | Ideal for discreet installation |
Top features | Compact wall bracket included |
Weight | 1.9kg inc bracketry and wall mount |
Colour | Polar white / Beige (off-white) |
Slate gray (anthracite), Brick red | |
Smiley (yellow) | |
Technical data | |
Rated measurement | 0.33m |
F/D | 0.6 |
Gain | 30 dBi @ 11.3 GHz |
Offset angle | 30 degrees |
Feed reception | 40mm |
What's in the box | |
Satellite antenna 33cm | |
AZ/EL bracket with 40mm collar | |
Wall bracket (16.5cm stand-off) | |
Screws | |
Assembly instructions | |
Tool | |
LNB (if selected) |
