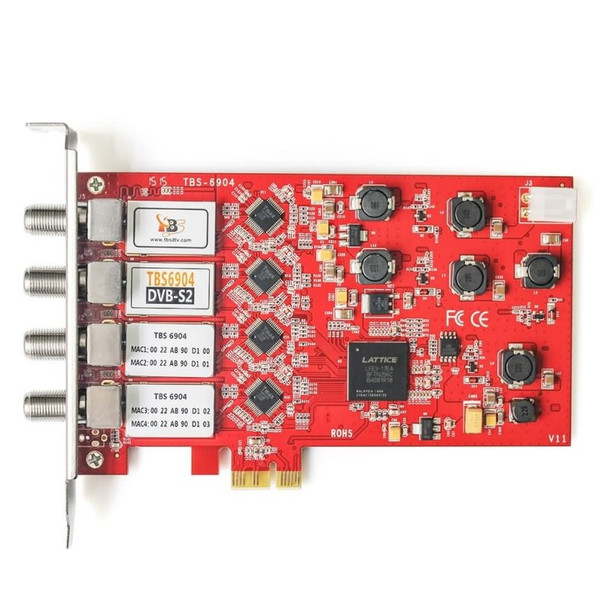

TBS6904 SE DVB-S2 Quad Tuner HD Satellite PCI Express Card
- SKU:
- TBS6904SESAT
- EAN:
- 69200342
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Description
TBS6904 SE QUAD TUNER DVB-S2 HD SATELLITE PCIe CARD
The TBS6904 SE is a PCI Express interface digital satellite TV tuner card with four tuners for watching and recording Free to Air (FTA) satellite TV on PC. The four advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time. This quad tuner card is one of the most popular TV tuners for building IPTV streaming systems. The TBS team have developed both Windows BDA driver and Linux driver up to the latest kernel for this quad tuner card Tested on. It’s compatible with Windows 7 Media Center and popular software like MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV.
You can use it to watch any free to air satellite TV programs in your region including Freesat HD if you are located in the UK. By using appropriate software, e.g. MediaPortal and its plugins, you can stream satellite TV contents to your iPhone, iPad or iPod.
Technical Specification:
Benefits
- DVB-S/S2-X quad tuner
- Watch & record satellite TV/ radio programs on PC
- EPG (Electronic Program Guide) support
- Unicable/one cable compatible
- High-speed data download via satellite
Applications
- Data receiving
- IPTV streaming
- Media monitoring
- Digital content distribution
Specifications
- Frequency range: 950~2150 MHz
- Signal Level: -69~-23dBm
- Symbol rate: 1~45Msps
- Demodulation:
DVB-S, QPSK,
DVB-S2, QPSK, 8PSK, 16APSK, 32APSK - FEC:
DVB-S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 - DiSEqC support: 1.0, 1.2, 2.x
Connections
- PCI Express
- 4x LNB IN
System Requirements
- Windows XP / Vista/ 7/8/10/11, Linux
- Available PCI Express x1, x4, x8 or x16 slot
- Satellite dish and LNB
Package Contents
- 1 x TBS6904
- 1 x Power cable
