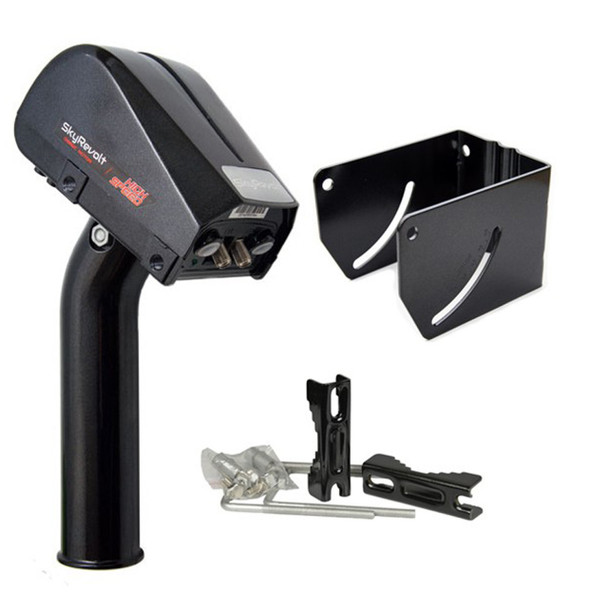

SkyRevolt SVM-P DiSEqC 1.2 USALS Satellite Motor Antenna Positioner

SKY REVOLT DiSEqC 1.2 / 1.3 (USALS) SATELLITE ANTENNA MOTOR POSITIONER

The SkyRevolt Sat Motor DiSEqC 1.2 allows you to easily switch the satellite antenna on different satellites up to a mirror size of 120 cm. It is controlled via a receiver with Diseqc 1.2 or 1.3 without additional power and has 100 satellite positions. The stable construction of the motor ensures longer longevity and stability.

The power supply is provided by the receiver, which transmits the current via the coaxial cable and thus supplies the motor with power.

TECHNICAL DATA

Protocol: DiSEqC 1.2 & Go to "X"
Compatible receivers: Receiver with DiSEqC 1.2 function
Antenna size: Max. 120cm
Speed: 2.5° / sec (at 13V); 3.2° / sec (at 18V).
Azimuth angle: 80° East ~ 80° West (160°)
Elevation angle: 25~75°
Input voltage: 13/18V
Output voltage: 13 /18 V
Power consumption: 100mA (Standby) / 200mA (Normal) / 350mA (Max.)
Satellite positions: 100 positions
Calibration function: Yes, "Go to X" (go to 0°)
Manual East/West Buttons: Yes, on the bottom
Limit protection: 1. Fixed via microswitch, 2. Programmable software limit, 3. Current limit
Positioning sensor: High Resolution Hall Effect Sensor
Connection: F connection
Weight (motor): 3.1 kg (net) / 3.5 kg
Dimensions (motor): 345 x 168 x 110mm

SCOPE OF DELIVERY

- SkyRevolt SAT DiSEqC Motor 1.3 SVM-P
- Mounting accessories (21 parts)
- Assembly instructions & operating instructions
