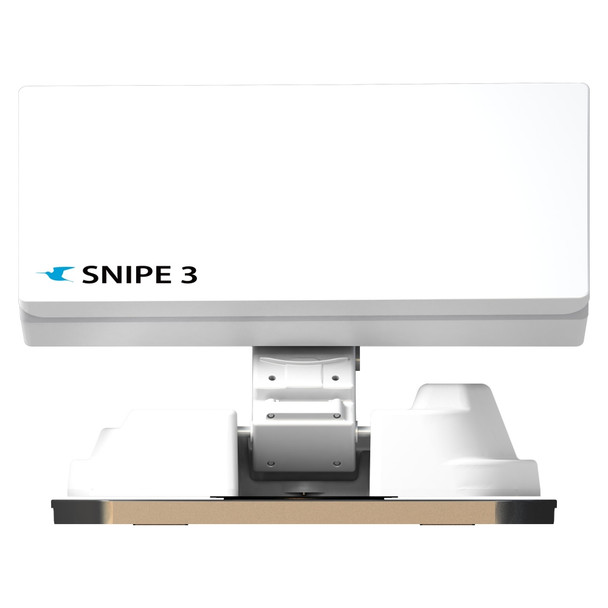

Selfsat SNIPE v3 White Line Single LNB Automatic Flat Satellite Antenna

SELFSAT SNIPE V3 SINGLE 'WHITE LINE' FULLY AUTOMATIC FLAT SATELLITE ANTENNA

THE ALL NEW SNIPE 3 'WHITE LINE'

EVEN MORE DURABLE WITH UPDATED GEARING!

BRAND NEW SET TOP BOX 'STYLE' CONTROLLER!

MOUNTING BRACKET INCLUDED!

The Selfsat Snipe V3 'White Line' Single Output fully automatic satellite antenna offers an inconspicuous installation due to its new completely white stylish design. The compact form factor of the SNIPE 3 antenna takes up very little space - ideal for mounting on the roof of a motorhome. Even the annoying alignment at a new location is eliminated. Thanks to the integrated GPS module and electronically controlled drive, the antenna automatically aligns itself at the touch of a button. You receive your usual desired program even when traveling, as long as the respective satellite is available. The SNIPE 3 automatically folds as soon as you turn off the receiver or start the vehicle.

Despite its small dimensions, the Selfsat SNIPE 3 offers a very good reception results. The three-layer antenna structure with wave guide horn array function largely prevents the diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated and directed to the LNB. The result: a high signal strength at the LNB.

• Automatic alignment of the desired satellite at the touch of a button
• Tricky manual antenna alignment completely eliminated
• 10 pre-programmed satellites (Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor, Eutelsat 5W, Hispasat)
• Compatible with DiSEqC 1.0 and 1.1 protocol. Control Snipe v3 directly from your satellite receiver
• Automatic adjustment of elevation, azimuth and skew by antenna drive
• Reception performance comparable to a conventional 60cm dish
• Very practical for motorhomes: ultra-flat construction
• Suitable for mobile use as well as fixed roof mounting
• Suitable for permanent use
• Waterproof construction with drainage system
• World's smallest and most powerful automatic satellite antenna
• Single LNB for connection to 1 receiver box / TV

New Control Unit

Advantages of the new SNIPE 3

• New antenna with a new design
  - The new design ensures even better reception
• Improved durability
  - Waterproof and with drainage system
  - Light and rustproof due to reinforced plastic material
  - Built-in high voltage protection circuit to prevent short circuits at the LNB
• Advanced technology
  - Support for DiSEqC 1.0 / 1.1
  - Car satellite switch with TV channel control
  - Move to HOME position by switching off the receiver / TV
• New additional functions
  - Up to 12 preset satellites
  - Optimum inclination adjustment and fast search with GPS
  - Automatic retraction to the HOME position when the vehicle starts
• Solid mechanics
  - Precise alignment with die-cast aluminum gearbox housing
  - A strong lock protects the antenna from shock during the ride
  - The longevity of the gearing has been greatly improved through the use of die-cast aluminum
• New controller
  - Smart TP management with storage of 12 transponders (TPs)
  - Automatic removal of obsolete TP and automatic update of new TP
  - Main control buttons directly on the controller provide easy operation and maintenance of the device
  - Easy upgrade procedure via USB
• New construction
  - No mechanical damage when lifting the antenna. Improved home position including locking system ensures a firm and secure grip while driving
• New gearing
  New powerful gearing, reinforced with a 18:1 gear ratio, provides high torque and less noise when aligned

Technical specifications:

• LNB input frequency: 10.7 ~ 12.75 GHz
• Polarization: Vertical & Horizontal
• Gain: 33.7 dBi at 12.7 GHz
• Dimensions (W x H x D): 515 x 355 x 201 mm
• Weight: 10.3 kg (without case, mounting plate and accessories)
• Min. EIRP: 50 dBw
• Elevation: automatic, 15-90 °
• Azimuth: automatic, 360 °
• Skew: automatic, -45 ° to + 45 °
• DiSEqC: 1.0 / 1.1
• Satellite search time: max. 180s
• LNB output: 1
• LNB output frequency: 950 ~ 2,150 MHz
• LNB LO frequency: 9.75 / 10.6 GHz
• Operating temperature: -30 to +60 ° C
• Supply voltage: 12V DC
• Power consumption: 30W (during satellite search)

Scope of Delivery:

• Fully automatic satellite antenna SNIPE Version 3 with Single LNB
• Mounting plate for mounting eg on the roof of a motorhome
• Cigarette lighter cable
• Antenna cable (gray) 12m
• Controller SNIPE 3
• controller support
• Controller cable (black) 12m
• Base pads
• Carrying case
• Cable holder
• Cable gland
• Allen key
• Mounting screws
• Operation manual
