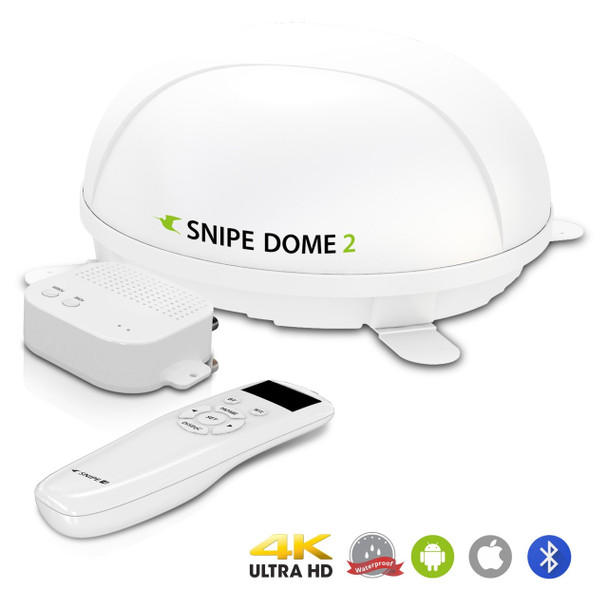

Selfsat SNIPE Dome 2 Twin with Bluetooth iOS Android Remote Control

FREE SHIPPING - PLEASE ALLOW 3 TO 5 BUSINESS DAYS FOR DELIVERY

SELFSAT SNIPE DOME 2 TWIN OUTPUT FULLY AUTOMATIC FLAT SATELLITE ANTENNA WITH BT / ANDROID / iOS REMOTE CONTROL

THE NEW SNIPE DOME 2 WITH BLUETOOTH / iOS / ANDROID REMOTE CONTROL!

TWIN OUTPUT VERSION TO FEED TWO TV's / LOCATIONS OR PVR RECEIVER!

FOR FIXED MOUNTING! JUST TWO CABLES REQUIRED FOR INSTALLATION!

OPERATION CARRIED OUT WIRELESSLY VIA BLUETOOTH REMOTE OR SMARTPHONE APP!

The elegant Snipe Dome is the next generation of fully automatic antenna without any wired controller. Control and maintenance are carried out wirelessly either via the included bluetooth remote control or via smartphone app. Only two antenna cablea are required for installation.

At the push of a button on the remote control, the antenna automatically finds the selected satellite within 1-2 minutes and enables reception from parked caravan trailers or motorhomes. In contrast to the standard systems, the Selfsat Dome offers a flat antenna as a receiving unit. This new technology enables a compact design of the antenna, whereby the reception characteristics remain the same. The antenna is optimally protected against external damage by an elegant plastic cover. There is no annoying assembly and dismantling at the site. The included positioner works independently and can be operated with any satellite receiver.

Integrated GPS receiver

Watch TV at the press of a button.

The Selfsat Snipe Dome has an integrated GPS receiver to determine the location faster when searching for satellites.

You can receive all UK free to air television and radio programs in the most important holiday destinations in the UK and Europe.

The antenna is preprogrammed for a total of 8 satellites. After switching on, you only have to press a button on the remote control to receive satellite TV fully automatically.

Technical Specification:

• Antenna type: flat antenna
• Mirror size: 480 x 240 mm
• Number of participants: 2
• LNB type: Universal LNB
• Frequency band: Ku band
• Frequency range: 10.7 GHz to 12.75 GHz
• Antenna gain: 33.7 dBi
• Received power: 50 dBW
• Polarization: H / V
• Motor control: 2-axis DC motor
• Tilt angle: 15 ° ~ 75 °
• Search angle: 360 °
• Alignment time: 1-2 min.
• Temperature range: -30 ° C to + 60 ° C

Pre-programmed satellites:

• Astra 1 (19.2 ° East)
• Astra 2 (28.2 ° East)
• Astra 3 (23.5 ° East)
• Astra 4 (4.8 ° East)
• Hotbird (13 ° East)
• Thor (0.8 ° West)
• Eutelsat 5 West A (5 ° West)
• Eutelsat 9A (9 ° East)

Power supply:

• 12 V ~ 24 V

Technical data of the Selfsat Dome:

Dome unit
Width: 660 mm
Depth: 660 mm
Height: 310 mm
Weight: 8.0 kg (net)

Control unit:
Width: 77 mm
Height: 126 mm
Depth: 30mm
Weight: 133 g

Carton:
Width: 750 mm
Depth: 750 mm
Height: 470 mm
Weight: 16 kg (gross)

Scope of delivery:
Selfsat Snipe Dome Antenna
Control Unit
Mounting Bracket
2x12m coaxial cable (for receiver)
12m coaxial cable (for control unit)
12V vehicle connection cable
Screw set
Roof penetration
Cable Gland
User Guide
