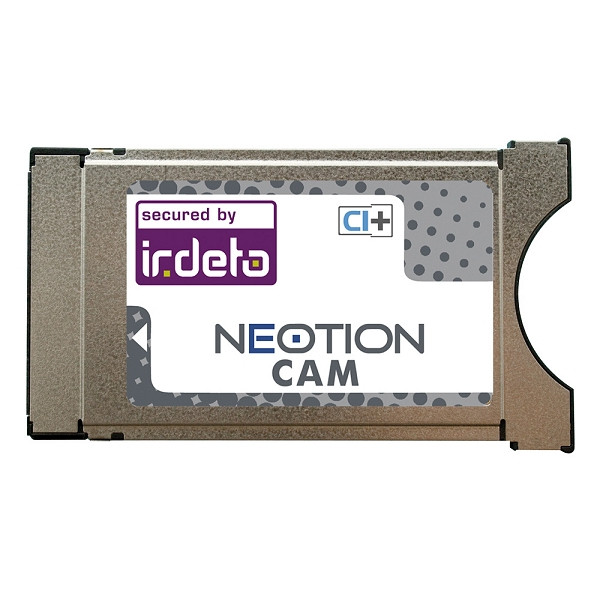

Irdeto Secure CI+ CAM (Neotion)

NEOTION IRDETO SECURE CI+ CAM DUAL MODE SOFTCELL 3.11

Neotion CI Plus Secure CAM Irdeto Dual Mode Softcell 3.11 for use with Irdeto encrypted services. Irdeto Softcell 3.11 advanced Secure CAM, gives access to DVB encrypted programmes. This unit is compatible with services CI+ encrypted services and as well as regular Irdeto encrypted transmissions.

The Irdeto CI+ CAM is compatible with programme services like UPC Direct Hungary, Canal Digitaal Netherlands, Nova Greece, Redlight TV, Satisfaction TV, Private Spice and many more.

Powered by NEOTION in-house silicon technology, the NEOTION Plug-n-Play CAM enables Digital TV sets (iDTV) and Set-Top Boxes to decode TV programs scrambled with Conditional Access System IRDETO (TM) Dual Mode - Softcell 3.11 (compatible with lower version).

Inserted in the Common Interface (DVB-CI or CI Plus) slot, NEOTION CAM allows viewers to simply benefit from the booming emergence of MPEG-4 / MPEG-2 and HDTV channels scrambled with IRDETO on their digital receivers.

TECHNICAL SPECIFICATION:

Stream Type Supported

• MPEG-2, MPEG-4, SD and HD
• All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
• Private Data
• Teletext

Interfacing

• Plug-and-Play & User Friendly
• DVB-CI high level MMI compliant / CI Plus browser
• Languages: English (more on demand)

Standards

• DVB Common Interface standard and PCMCIA
• ISO/IEC EN50221 compliant
• CI Plus specification v1.2 compliant
• Smart Card: full ISO 7816-3 (T=0, T=14) compliant
• RoHS compliant - directive 2002/95/EC

OTA

• Upgrade from MPEG transport stream over the air
• DVB SSU compliant

Memory

• On chip eDRAM: 16Mbits
• Off chip SDRAM: 128Mbits
• Off chip Serial Flash: 32Mbits

Security

• IRDETO Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
• Unique and protected Authentication ID
• Hardware crypto accelerators
• Dual mode : Secure Chipset or No Secure Chipset mode according to the operator broadcast system settings. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
• On chip OTP
• Copy Protection CI Plus Standard: both AES and DES encryption supported

Processing

• ARM7TM @ 126MHz
• 8K I-cache and 8K D-cache
• 8 DVB-CSA descrambler up to 64 PID
• Section Filters - Transport packet filters up to 32 PID

Size, Weight & Power Supply

• PCMCIA Type II
• 46g
• 5 volts, from any DVB-CI / CI Plus host
