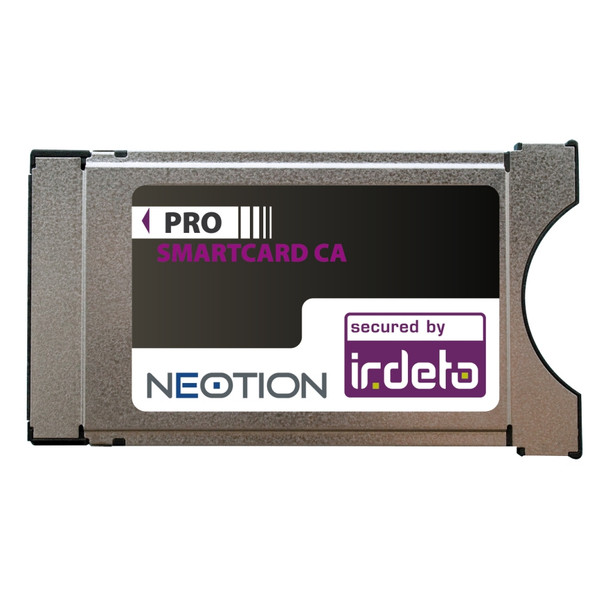

Irdeto Professional CAM by Neotion

IRDETO PROFESSIONAL CA MODULE BY NEOTION

DUAL CHANNEL AS STANDARD

Irdeto Professional CAM manufactured by Neotion for decrypting multiple encrypted services simultaneously.

The Irdeto Pro CAM enables professional head-ends to decode simultaneously several scrambled services (TV programs) with Conditional Access System IRDETO SMARTCARD and SOFTWARE CA.  Inserted directly into the Integrated Receiver / Decoder (IRD) DVB-CI slot, the IRDETO PRO CAM provides multi-descrambling features compliant with a 24/7 operating required environment to professional customers of digital TV.

Available in 2, 4, 6 and 8 channel variants. Please check the appropriate box above before clicking 'Add To Cart'.

TECHNICAL SPECIFICATION:

Stream Type supported

•  MPEG-2, MPEG-4, SD and HD
• All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
• Private Data
• Teletext

•  Plug-and-Play & User Friendly
• DVB-CI high level MMI compliant
• Languages: English (more on demand)

Standards

•  DVB Common Interface standard and PCMCIA ISO/IEC EN50221 compliant
• Smart Card: full ISO 7816-3 (T=0, T=14) compliant
• RoHS compliant - directive 2002/95/EC

OTA

• Upgrade from MPEG transport stream over the air
• DVB SSU compliant

Memory

• On chip eDRAM: 16Mbits
• Off chip SDRAM: 128Mbits
• Off chip Serial Flash: 32Mbits

Security

• IRDETO Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
• Unique and protected Authentication ID
• Hardware crypto accelerators
• On chip OTP
• Dual mode : Secure Chipset or No Secure Chipset mode according to the operator broadcast system settings. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)

• ARM7TM @ 126MHz
• 8K I-cache and 8K D-cache
• 8 DVB-CSA descrambler up to 64 PID
• Section Filters - Transport packet filters up to 32 PID

Size, Weight & Power supply

• PCMCIA Type II
• 46g
• 5 volts, from any DVB-CI host
