Invisible Control 4 Black IR Remote Extender

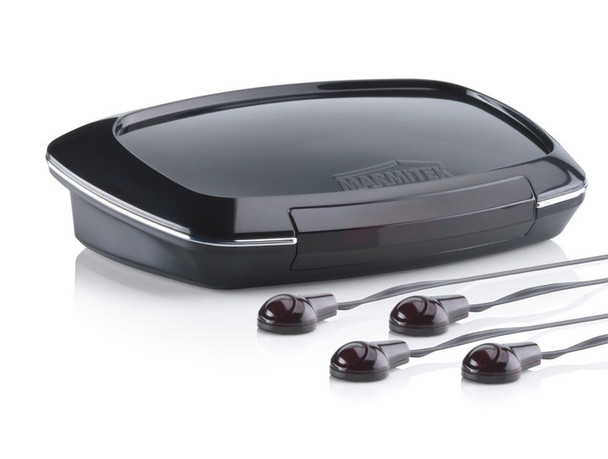

MARMITEK INVISIBLE CONTROL 4 BLACK - REMOTE CONTROL IR EXTENDER

The Marmitek Invisible Control 4 allows you to use your existing infrared (IR) remote controls to control up to four audio-visual devices which are located behind closed cabinet doors or in other concealed locations.

The Invisible Control works with 99% of IR equipment. Please note that the Invisible Control does not work with IrDA signals used by some UK cable set-top boxes or the higher frequency infrared signals used by Bang and Olufsen equipment. It is not compatible with hi-fi systems that are controlled using remote controls that transmit radio frequencies (e.g. some Bose systems).

The Invisible Control is powered by 4 x AAA batteries (not included) or from a mains power supply (included).

How does the Invisible Control 4 work?
Place the Invisible Control in sight of your own remote control. Stick the IR LEDs on the front panel of your A/V equipment. Point the remote control at the Invisible Control in order to operate your A/V equipment via the connected IR LEDs.

Key Features:

• Operate the audio/video equipment (max. 4 devices) in a closed multimedia cabinet with your own remote control
• Works with almost all A/V equipment (HDD-recorder, set-top box, satellite decoder and Stereo) with an infrared sensor
• Incorporates new IR filter techniques for use in the vicinity of Flat Screen TVs (Plasma, LCD and LED), indirect sunlight and energy-efficient light bulbs
• Connect and control multiple appliances, with the cabinet doors shut or out of sight
• Works on 4xAAA battery (not included) or from a mains supply (adapter included)
• Compatible with Sky, Sky+ and Sky+HD

Box Contents:

• 1 x Invisible Control 4 Module (IR receiver)
• 2 x IR Extender Cable with 2 IR LED's (eyes)
• 1 x Energy Saving Switched Mode Power Supply Power
• 1 x User Manual (English / Deutsch / Francais / Espanol / Nederlands)

Technical Information:

Module

• Power: 4 x 'AAA' size Alkaline batteries or 12VDC 200mA adapter
• IR LEDs connections: 2 x 3.5mm jack plug (mono)
• Frequency range: 30-60 KHz
• IR reception range: ± 8 metres
• IR reception angle: 60° (+30°/-30° from centre)
• Dimensions: 125 x 89 x 33 mm

IR Extension Cable

• Connection: 3.5mm jack plug
• IR LEDs: 2 x IR LED
• Length of cable: 3 metres (from plug to division 2m, from division to LED 1m)
