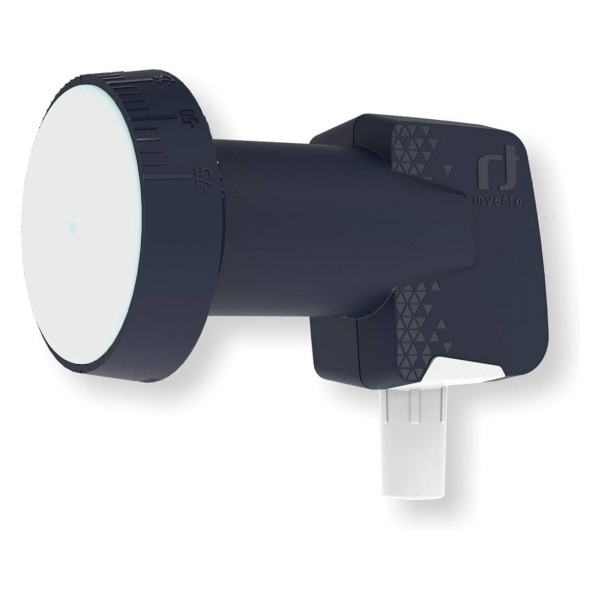

Inverto Premium Single Output Universal LNB

INVERTO PREMIUM 0.2dB SINGLE OUTPUT LNB

HIGH PERFORMANCE HD/4K DVB-S2 LNB

Specifically designed and selcted to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception.

It enables the reception of satellite TV and radio from a single satellite and its distribution to a single tuner Set-top box.

The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions.

Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.

Key Features:

• Low Phase Noise, DVB-S2 (HD and UHD) compliant
• Very low Noise Figure
• Low power consumption
• High Cross Polarization Isolation
• High Frequency stability

Technical specification

• Input frequency range 10.7 GHz ~ 12.75 GHz
• Output frequency range  950 MHz ~ 2150 MHzLow band LO frequency 9.75 GHz
• High band LO frequency 10.6 GHz
• Noise figure 0.2 dB typ. (0.7 dB max.)
• LO frequency accuracy @ 25° C ±500 kHz max.
• LO temperature drift ±1.0 MHz max.
• LO phase noise @ 10 kHz -80 dBc/Hz max.
• Conversion gain 56 dB min.
• Gain ripple (over 26 MHz bandwidth) ±0.6 dB
• Gain variation (over full band) ±3 dB
• Image rejection 40 dB min.
• 3rd order intermodulation - ICP3 10 dBm min.
• 1dB compression point (@ output) 0 dBm min.
• Cross polarization isolation 22 dB min.
• Control signal Ca (V) 11.0 V ~ 14.0 V
• Control signal Cb (H) 16.0 V ~ 20.0 V
• Control signal Cc (band switching) 22 kHz ±4 kHz , 0.4 V ~ 0.8V pp
• Output VSWR 2.5 : 1
• In band spurious level -60 dBm max.
• Current consumption 80 mA max. @ 11 VDC ~ 20 VDC
• Operating temperature -35 °C ~ +60 °C
• Output impedance 75 Ω
• Output connector type F-type (female)
• Dish F/D ratio 0.6
• Colour Dark Blue (Off Black)
• Weight 136 g
• Manufacturer Part No. IDLP-SNL410-PREMU-OPN
• Manufactuer Item No. 5445

Scope of delivery

- Inverto Single Output LNB
- Rubber cable boot
