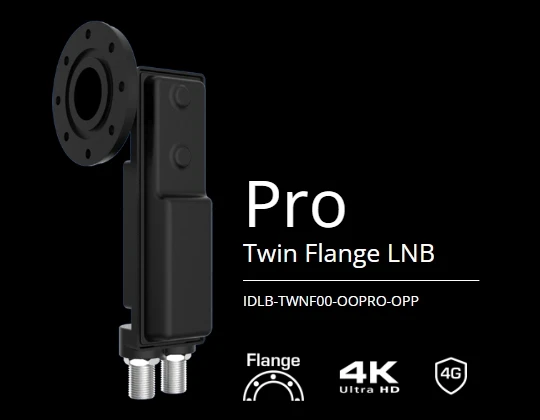

Inverto Black Pro Twin C120 Flange LNB

INVERTO BLACK PRO TWIN OUTPUT C120 FLANGE PREMIUM LNB

C120 FITTING FOR PRIME FOCUS SATELLITE ANTENNA

The Inverto BLACK Pro Twin C120 Flange LNB has been specifically designed and selected to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV and radio from a single satellite and its distribution to two single tuner Set-top boxes (or 1 twin tuner PVR). The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for demanding customers of DTH operators and satellite broadcast reception across the world.

Key Features:

• Low Phase Noise, DVB-S2 (HDTV) compliant
• Low Noise Figure
• Low Power Consumption
• High Cross Polarization Isolation
• High Frequency Stability

Technical Specification:

• Low band input frequency range 10.7 GHz ~ 11.7 GHz
• Low band output frequency range 950 MHz ~ 1950 MHz
• High band input frequency range
• 11.7 GHz ~ 12.75 GHz
• High band output frequency range 1100 MHz ~ 2150 MHz
• High band LO frequency 10.6 GHz
• Noise figure 0.2 dB
• LO frequency 9.75 GHz
• LO temperature drift ±3.0 MHz max.
• LO initial accuracy ±1.0 MHz max.
• LO phase noise @ 10 kHz -80 dBc / Hz max
• Conversion gain 55 dB min.
• Gain ripple (over 26 MHz bandwidth) ±0.75 dB
• Gain variation (over full band) ±4 dB max.
• Image rejection 40 dB min.
• 1 dB compression point (@ output) 0.0 dBm min.
• Cross polarization isolation 22 dB min.
• Control signal Ca (V) 10.0 V ~ 14.0 V
• Control signal Cb (H) 16.0 V ~ 20.0 V
• Control signal Cc (band switching) 22 ±4 kHz
• Output VSWR 2.5 : 1
• In band spurious level - 60 dBm max.
• Current consumption 120 mA max. @ 11 V ~ 20 V
• Operating temperature -30 °C  ~  +60 °C
• Output impedance 75 Ω
• Output connector type F-Type (female)
• Weight 180 g

Scope of Delivery

• Inverto Black Pro Twin Flange LNB
• Screw Pack x4
• Rubber 'O' Ring
