COMBOLOOK COLOR HD DVB-S2/DVB-T SPECTRUM ANALYZER BY EMITOR

BEST PROFESSIONAL TOOL FOR BOTH SATELLITE & AERIAL INSTALLS

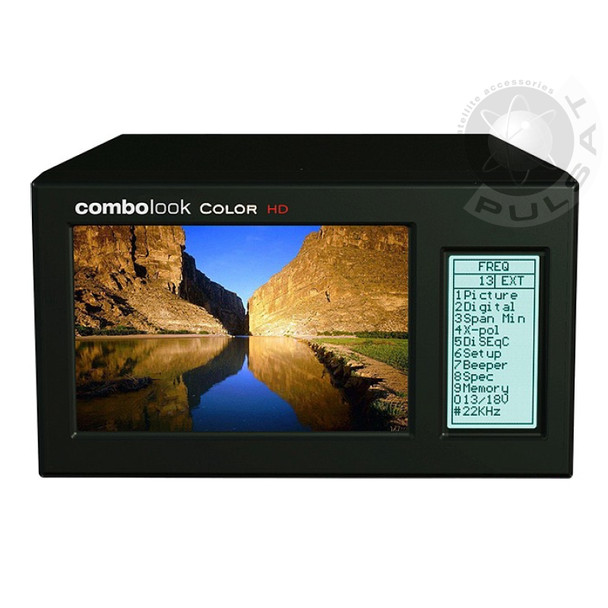

The COMBOLOOK COLOR HD is a Swedish made SAT-TV/TV instrument and spectrum-analyzer. The unit is made for exact alignment and adjustment of satellite-dishes and aerial antennas. It is also an exellent tool for working with Cable-TV networks. It is intended for professional use when high accuracy and precise information is required. It´s easily operated without a lot of unnecessary buttons and knobs. The basic functions are easy to grasp and take just minutes to learn.

The COMBOLOOK COLOUR HD is able to work with the return-path signals in Cable-TV networks (5-65 MHz). according to the EN50083 standard. The TV-part presents the full range spectrum of 2-900 MHz which can be zoomed into smaller parts (min 13 MHz-span).

The TV-part is very sensitive and accurate. It presents signals ±1dB (at +20° C). There is a built in DVB-T receiver showing BER + S/N-values. The SAT-part also has very high resolution and accuracy and can display a live MPEG-2 onscreen picture. It presents measured data ±1½ dB (at 20° C). The Sat-TV spectrum can be expanded (zoom in) for correct adjustment of the polarisation (“cross-polarisation”).

The SAT-part presents, under one of the sub menus, digital information like BER (bit error rate), constellation-diagram (QPSK and 8PSK) and S/N (signal/noise ratio). The NIT function of the SAT-part can identify the various TV-satellites by reading out the NIT in the Bitstream (NIT = Network Information Table). The NIT also contains info about the transponders TV and Radio-channels. The unit has a built in DVB MPEG-2 receiver which can store up to 100 Free To Air DVB-S channels in a favourite channel-list.

The COMBOLOOK COLOR HD can handle a lot of memory-positions and both spectrum-pictures and certain frequencies can be saved (both analog and digital transponders). The power of the instrument is supplied by a built in and rechargeable battery. The instrument is provided with a 5” color 16:9 LCD-monitor. Menus/help-displays are shown on the LCDscreen (64x128) beside the monitor.

The spectrum analyser of COMBOLOOK COLOR HD can fully analyse DVB-S, DVB-S2 and DVB-T transmission and can display the picture of live DVB-S MPEG-2 transmissions on the built-in 16:9 5" colour LCD monitor. Menu and help displays are shown on the 64x128 LCD screen beside the monitor.

Download User Manual

Download Product Information

Features:

• Spectrum-analyzer 2-900MHz and 950-2150MHz
• Presents full range and expanded spectrum
• Very high accuracy, CATV +/-1dB, SAT-TV +/- 1.5dB at 20°C
• Super bright 5” 16:9 TFT-LCD color display
• DVB-S/S2 -receiver 920-2150MHz
• DVB-T measurement MPEG2 showing BER, SNR and MER
• Automatic Satellite identification
• Readout of NIT - gives SAT ID and TV/Radio-channel info
• Digital BER and S/N-ratio (DVB-S, S2 and DVB-T)
• QPSK and 8PSK constellation diagram
• DVB-S (Free to Air) and SAT-analog TV-picture
• Aerial power output, 0, 6, 12, 18 and 24V
• LNB voltage 13/18V, 22KHz tone switch
• DiSEqC according to level 1.0, 1.1 and 1.2
• Lots of memory positions for spectrum pictures
• RS232 for PC-connection (up/download)
• Rechargeable Li-Ion battery
• Nice & small, only 4Kg complete with carrying case

Technical Specification:

• Input frequency: 5-900 Mhz and 920-2150MHz
• Sat-TV min level in: About 35 dBuV (noise)
• Sat-TV max level in: About 90 dBuV
• TV-part max input level, picture: 110 dByV
• Spectrum: 120 dByV
• Sat-TV attenuation: 15 dB attenuator on/off
• TV-part: attenuation: 45 dB in 1 dB step
• Display of signal level (analog): dB on LCD/monitor
• Pitch-tone
• Sat-TV accuracy: ±1½ dB (at +20° C)
• TV-part accuracy: ±1 dB (at +20° C)
• TV-part resolution bandwidth: 1 MHz or 300 kHz
• TV-part video bandwidth: 100, 10 ,1 kHz or 100Hz
• DVB-S/S-2 Digital display of signal level: S/N (signal/noise-ratio) BER (bit errorrate) Constellation (QPSK and 8PSK)
• Satellite-indentification: Yes, by reading out the NIT in the bitstream
• Info about TV and Radio channels
• TV standard: Multi TV/ (PAL, NTSC, SECAM)
• TV text-TV (CEEFAX): Yes
• KU- C-band: Yes, selectable
• Input impedance: 75 Ohm, F-con
• Picture-screen: 5” 16:9 TFT-LCD monitor
• Menus: On LCD 64x128
• Memory: Lots of spectrum pictures can be storedwith name
• Stored spectrum can be mixed for easy identification of satellite.
• “Maxhold” function
• Favourite channels: Both analog and digital frequencies can be stored (with name)
• 100 DVB-S Free to Air channels can be stored in a favourite channel list
• DVB-T channels can be stored and viewed upon
• PC-connection: RS-232output and PC-software
• Sat-TV power out: Yes, 13-18V
• TV power out: On/Off - 5 volt and 15-24 volt
• Sat-TV control: 22 kHz, DiSEqC SatCr (UniCable)
• DiSEqC Yes, all 1.0 and 1.1. 1.2
• DiSEqC actuator: Built in positioner for DiSEqC 1.2,Toneburst on/off
• Battery: Rechargable 12v, 3.5 amp/hour
• Weight: About 4 kg incl battery
• Accessories: Nylon carrying-case
• Power-supply of 220v/13.5v, 1.7amp
• Car-charger
