EasySplicer PRO Handheld Fibre Fusion Splicer

PROFESSIONAL PRECISION FIBRE SPLICER!

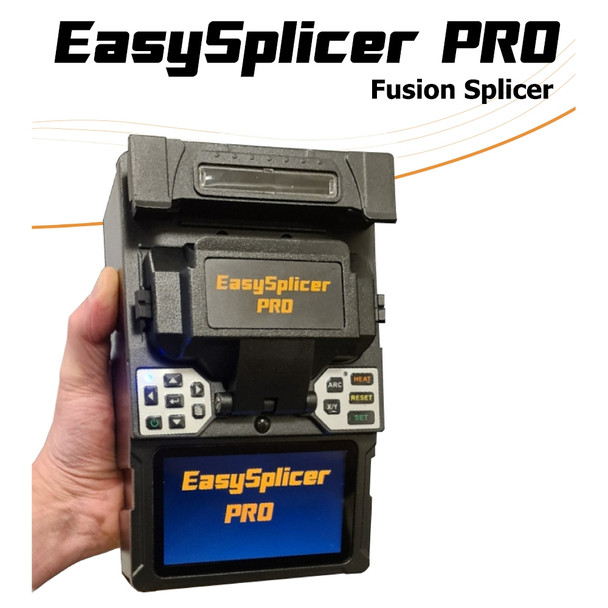

EASYSPLICER PRO HANDHELD FUSION FIBRE SPLICER

EasySplicer PRO is a 4 motor, X/Y core-positioning Fusion Splicer designed for daily operation in the field by Fiber optic Networks. It's small and handy size makes it easy to bring along to any kind of work. The whole system can be operated in its carry-case to prevent dirt and dust from reaching the sensitive parts in the fusion splicer. It's rugged design makes it good for both indoors and out in the field.

The EasySplicer PRO is unique in such a way that it uses separate fiberholders to accomdate the various cables on the market. The holders make it very easy to prepare and load the fibre into the splicer. A big advantage is the fact you can mix fibers whilst achieving a very nice looking (and working!) cable-splice.

The precision of the unit is extremely high with a typical loss of 0.02dB (Single mode). After splicing the unit pull test the splice and calculates a loss estimation.

EasySplicer PRO constantly calirates itself for the environment for changes such as moisture, air pressure and temperature.

The battery pack inside the unit can perform up to 200 splice-cycles between charges.

Detailed product specification Download Datasheet

Key features:

• Fusion splicing made easy and affordable
• Perfect for the FTTH installer
• For both Singlemode and Multiple fibres
• Provides loss estimation result
• Pull test of performed splices
• Standalone battery operation
• Built-in oven

Technical Specification:

• Splicing method: Core positioning (X/Y)
• Fiber Types: SMF, MMF 50/125µm, 62.5/125µm fiber
• 250µm primary and 900µm secondary coated fiber
• Fiber Handling: Fiber holders, 3 pairs (250, 900 and loose tube)
• Optional for any cable-type (drop-cable, 2mm, 3mm, splice on connectors and so on)
• Calibration: Automatic (temperature and air pressure) or manually
• Splice Programs: 40 groups
• Operation, modes: Automatic or Manual
• Typical Splice Loss: 0.02dB SMF, 0.01dB MMF
• Return loss: >60dB
• Tension test: Yes, 1.8-2.2N
• Typical Cycle Time: 6s + 25s (splice + oven cycle 40/60mm)
• Sleeve Dimensions Max 64mm length, 2-7mm diameter supported by oven
• Display: LCD, color, 4.3”
• Oven: Ceramic/teflon-type. 40/60mm sleeves in about 25 sec
• Electrodes, life: >4000 splices
• Magnification Cameras: x250 (X or Y) x125 (X and Y together)
• Communication: USB 2.0 for uploading splice info and upgrade
• Splice memory: 4000 results internally
• Altitude Compensation: Automatic up to 4000 meters altitude with compensation for moisture and temperature
• Operating Environment: -10C +50°C, max 95% RH, non-condensing
• Size: 149x120x127mm
• Weight: 1.9kg
• Power Sources: External power supply, 13.5V, 100-240VAC (50-60Hz)
• Built in 5800mAh Li-Ion battery pack
• Splicing Capacity:200 splices with oven cycles
• Additional Features: Loss estimation, Fiber fault detection, SD-card for logging etc.

Scope of Delivery:

• EasySplicer PRO Handheld Splicer with Built-In Oven
• 3 pairs of fibre holders, 250um, 900um and loose tube
• Cleaver with bin
• Stripper tool
• Rechargeable battery pack (built-in)
• Power supply
• Hard carry case
