Dr HD 500 Combo Colour BT Android Spectrum Satellite Terrestrial Meter

COMPACT ANDROID SATELLITE/TERRESTRIAL METER WITH SPECTRUM

THE DR HD500 UTILISES THE DISPLAY & PROCESSING POWER OF YOUR ANDROID DEVICE

EXPERIENCE FULL TOUCH-SCREEN METER FUNCTIONALITY

CONNECT WITH A TABLET AND BENEFIT FROM A SUPER-LARGE DISPLAY

DR HD 500 COMBO BT SATELLITE/TERRESTRIAL METER WITH NIT/SPECTRUM ANALYSER

The "Swiss Army Knife" for all your TV/RF/3G/4G/LTE Spectrum needs at an affordable price.

For the FIRST TIME EVER benefit from full touch-screen meter functionality by utilising your own Android smartphone or tablet over a wireless bluetooth connection.

Key features:

• USE YOUR BLUETOOTH READY ANDROID PHONE/TABLET AS THE DISPLAY!!!
• Real-time Spectrum Analyzer
• Powerful Signal Meter and Analyzer
• For the TV/FM/Radio/Air/Marine/Ham/etc signals
• Anything between 40…2250 MHz!
• For TV/Radio enthusiasts, Radio Hams, Sat/Cable TV Installers, RC Hobbyists
• Bug detection, Antennae Installation, EMF-compatibility issues… whatever!
• Are there harmful RF-signals in your house?

Technical Specifications:

• Fast Real-Time Spectrum analyzer
• Freq. range1: 250-2250 MHz
• Freq. range2: 40-1000 MHz
• View Satellite, Terrestrial and Cable TV signals
• Full VHF/UHF/FM/DAB/DVB spectrum coverage
• Marine band + Air band spectrum
• Also 3G/4G/GSM/PCS/LTE/similar bands spectrum
• Spectrum of 433/315/868 MHz RF-devices
• View Radio HAM bands, GMRS/FRS, amateur/DX radio + some radar spectrum, etc
• Everything that’s needed for Sat TV DVB-S/S2, T/T2 installation: spectrum, Sat ID, signal measurement, Services scanning
• Good for VSAT installations
• Proof of Perfomance reports
• Blind satellite identification (SAT ID!!!)
• Wide range of spectrum modes (min hold, max hold, average, transparent)
• Span: 2000 MHz-27 MHz
• Resolution: 8 MHz-100 KHz
• Narrow band display
• Pro-grade signal analyzer
• Link Margin display (Sat and Terr.TV)
• RSSI, C/N, MER, BER, PE display
• Constellation display
• NIT/SDT analyzer
• Services/channels scanner (Sat and Terr.)
• DiSEqC control (Sat)
• Cable power with overload protection: 5V/300mA, 13/18V 750mA
• Palm-size
• Auto Satellite data download
• Rechargeable battery

Whats in the box?

- Dr.HD 500 Combo BT Meter
- Mains Power Supply Charger 100V-240V EU/UK

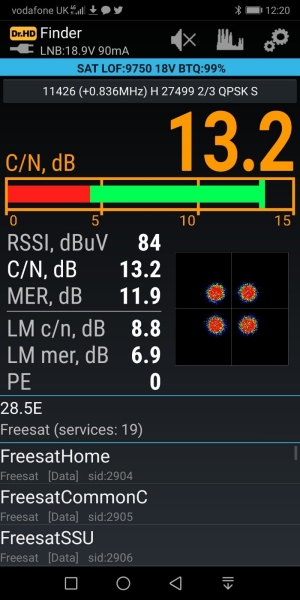

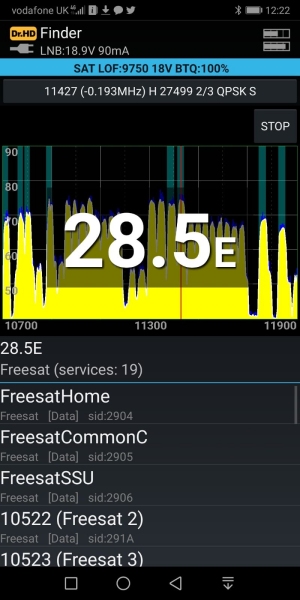

Screenshots from our test bench:
