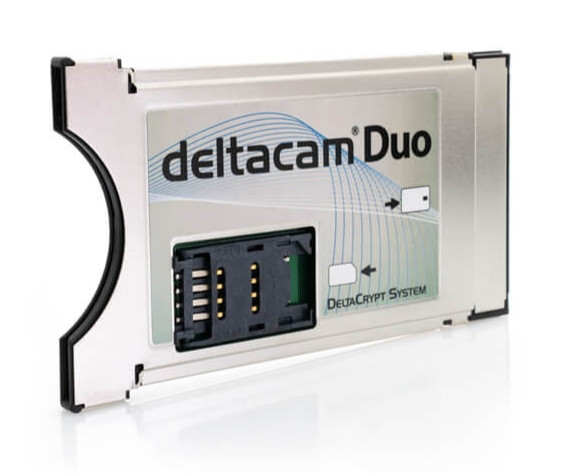

Deltacam Duo Twin CI Module Rev 3.0

DELTACAM DUO TWIN CI MODULE REV 3.0

Deltacam Duo Twin CI module with DeltaCrypt encryption 3.0 - new hardware

Deltacam Duo Twin CI module PCMCIA CAM (Iso and Sim card reader)
Deltacam Duo PCMCIA CAM is the DVB-CI compatible CI-CAM that provides the conditional access function mounted on the PCMCIA module attached to the digital broadcast receiver (STB) or integrated digital television (iDTV). This CI-CAM decrypts the encrypted MPEG2-TS from STB or iDTV and transmits clear or re-encrypted MPEG2-TS to iDTV (STB).

Properties:
Plug and Play
DVB CI (EN502221) -compliant PCMCIA CICAM

CAS:
CAS Embedded officially certified product

Security:
Safe ultra-fast start
Software encrypted and signed using a current security model (RSA 2048, AES128) using a hardware-secure implementation
CAS security keys embedded in chipset-protected OTP (also not accessible to the main CPU)
CA chipset pairing (based on Advanced Secure Chipset) approved by our CAS partners.

Decryption:
Can decrypt many services at the same time by processing multiple CA_PMT.
Max simultaneous decoding - 8 channels.
All commands defined by EN50221 (ONLY ADD, REMOVE, DELTE, FIRST, MORE, LAST) can be used.
Supports the general DVB scrambling algorithm DVB-CSA2 / DVB-CSA3
Supports the IPTV standard scrambling algorithm (IDSA), ATIS 0800006
Support MPEG-2 / MPEG-4 / SD / HD / UHD / 3D

Hardware specifications:
4 MB serial flash, 64 MB embedded DDRSDRAM
Data channel with two channels and 2048 bytes for the high-speed host interface for PCMCIA
